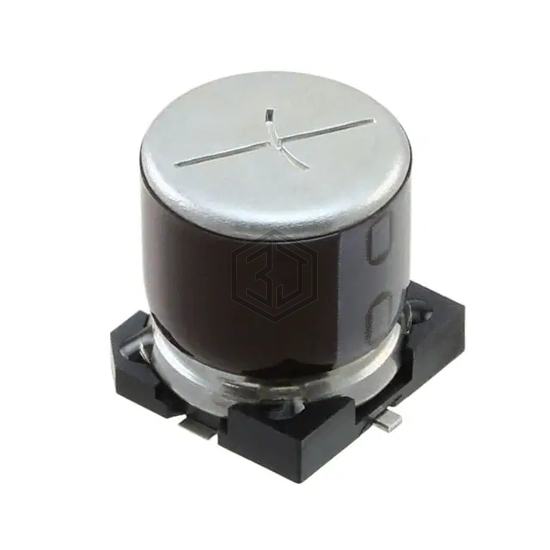

CAP ALUM 100UF 20% 35V SMD
RTK-35V101MH11GU-RRD is a Aluminum Electrolytic Capacitors manufactured by Elna America. CAP ALUM 100UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 4,824
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 3.3Ohm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 78.54 mA @ 120 Hz |
| Ripple Current @ High Frequency | 102 mA @ 100 kHz |
| Impedance | 550 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | 0.409" L x 0.409" W (10.40mm x 10.40mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
RTK-35V101MH11GU-RRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBC1E101MNS1GS | Nichicon | CAP ALUM 100UF 20% 25V SMD | 86% | View |
| VUA101M1CTR-0806S | Surge | CAP ALUM 16V POLAR | 77% | View |
| EEE-TQV101XAP | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V SMD | 73% | View |
| EMVH100ARA101MF80G | Chemi-Con | CAP ALUM 100UF 20% 10V SMD | 71% | View |
| VUJ101M1CTR-0810S | SURGE | CAP ALUM 100UF 20% 16V SMD | 69% | View |
| 35TXV100M10X10.5 | Rubycon | CAP ALUM 100UF 20% 35V SMD | 50% | View |
