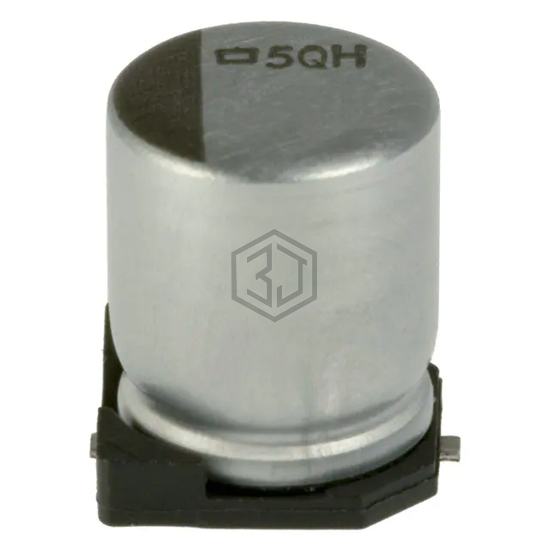

CAP ALUM 100UF 20% 10V SMD
EMVH100ADA101MF80G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 100UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 8,698
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 900mOhm @ 100kHz |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 102.3 mA @ 120 Hz |
| Ripple Current @ High Frequency | 110 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVH100ADA101MH63G | United Chemi-Con | CAP ALUM 100UF 20% 10V SMD | 100% | View |
| VUA101M1ATR-0806S | Surge | CAP ALUM 10V POLAR | 91% | View |
| EMVH250ARA101MH63G | Chemi-Con | CAP ALUM 100UF 20% 25V SMD | 79% | View |
| VUP101M1CTR-0607S | Surge | CAP ALUM 16V POLAR | 71% | View |
| VUP101M1ETR-0607S | Surge | CAP ALUM 25V POLAR | 64% | View |
| EMHK350ARA101MF80G | Chemi-Con | CAP ALUM 100UF 20% 35V SMD | 59% | View |
Submit your RFQ for EMVH100ADA101MF80G and get a quote within 24 hours.
