Panasonic Electronic Components

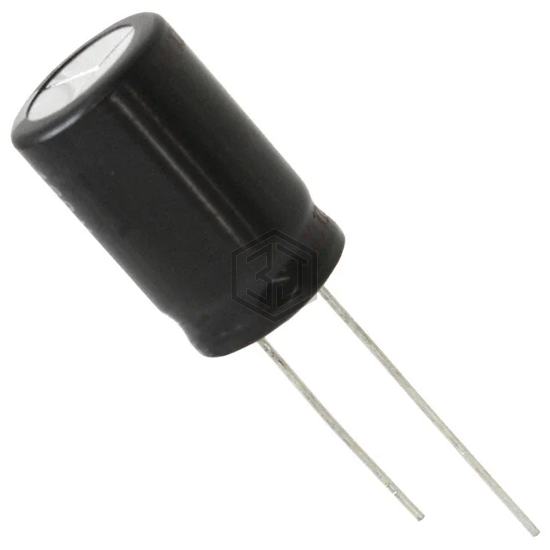

CAP ALUM 68UF 20% 350V RADIAL
EEU-EB2V680 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 68UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 115
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 390 mA @ 120 Hz |
| Ripple Current @ High Frequency | 780 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215256689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 400V RADIAL | 87% | View |
| B43252A5686M | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 450V SNAP | 84% | View |
| UCY2V680MHD | Nichicon | CAP ALUM 68UF 20% 350V RADIAL | 72% | View |
| EKXG201ELL680MK20S | United Chemi-Con | CAP ALUM 68UF 20% 200V RADIAL | 69% | View |
| 686CKH100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 68UF 20% 100V RADIAL | 63% | View |
| EKZE101ELL680MJ16S | United Chemi-Con | CAP ALUM 68UF 20% 100V RADIAL | 61% | View |
Submit your RFQ for EEU-EB2V680 and get a quote within 24 hours.
