CAP ALUM 68UF 20% 350V RADIAL

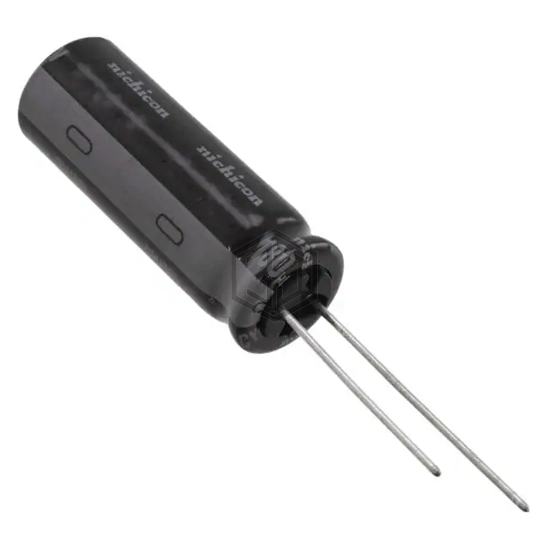

UCY2V680MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 9,828
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 695 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.39 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2V680MHD3 | Nichicon | CAP ALUM 68UF 20% 350V RADIAL | 100% | View |
| 400BXW68MEFR16X25 | Rubycon | CAP ALUM 68UF 20% 400V RADIAL | 91% | View |
| 450CXW68MEFR18X23.5 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 84% | View |
| EKXG201ELL680MK20S | United Chemi-Con | CAP ALUM 68UF 20% 200V RADIAL | 70% | View |
| MAL215256689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 400V RADIAL | 68% | View |
| 35YXF68MEFC6.3X11 | Rubycon | CAP ALUM 68UF 20% 35V RADIAL | 56% | View |
