Cornell Dubilier / Illinois Capacitor
CAP ALUM 68UF 20% 100V RADIAL

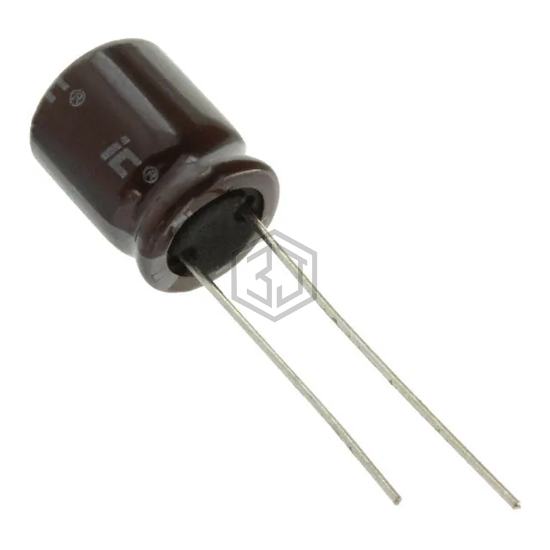

686CKH100M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 68UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 7,422
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 1.95Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213819689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 100V AXIAL | 100% | View |
| EKZE101ELL680MJ16S | United Chemi-Con | CAP ALUM 68UF 20% 100V RADIAL | 93% | View |
| 600D686F075DJ4 | Vishay Sprague | CAP ALUM 68UF 75V AXIAL | 82% | View |
| MAL215256689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 400V RADIAL | 70% | View |
| ELXY630ELL680MJ16S | United Chemi-Con | CAP ALUM 68UF 20% 63V RADIAL | 69% | View |
| EKXG201ELL680MK20S | United Chemi-Con | CAP ALUM 68UF 20% 200V RADIAL | 57% | View |
Submit your RFQ for 686CKH100M and get a quote within 24 hours.
