Panasonic Electronic Components
CAP ALUM 470UF 20% 450V SNAP

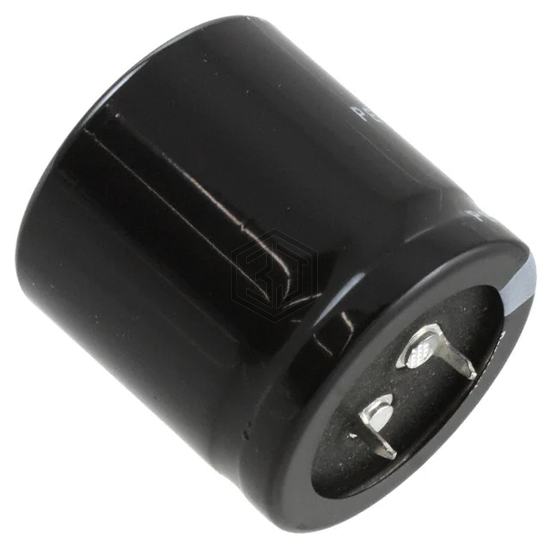

EET-HD2W471LJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 7,616
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.74 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.436 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HD2W471LJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508B9477M87 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 400V SNAP | 93% | View |
| ELXM3B1VSN471MA35S | United Chemi-Con | CAP ALUM 470UF 20% 315V SNAP | 88% | View |
| EKMT421VSN471MR50S | United Chemi-Con | CAP ALUM 470UF 20% 420V SNAP | 80% | View |
| LGN2D471MELZ30 | Nichicon | CAP ALUM 470UF 20% 200V SNAP | 73% | View |
| EKMH201VNN471MA20U | United Chemi-Con | CAP ALUM 470UF 20% 200V SNAP | 71% | View |
| UPT2D471MRD | Nichicon | CAP ALUM 470UF 20% 200V RADIAL | 64% | View |
Submit your RFQ for EET-HD2W471LJ and get a quote within 24 hours.
