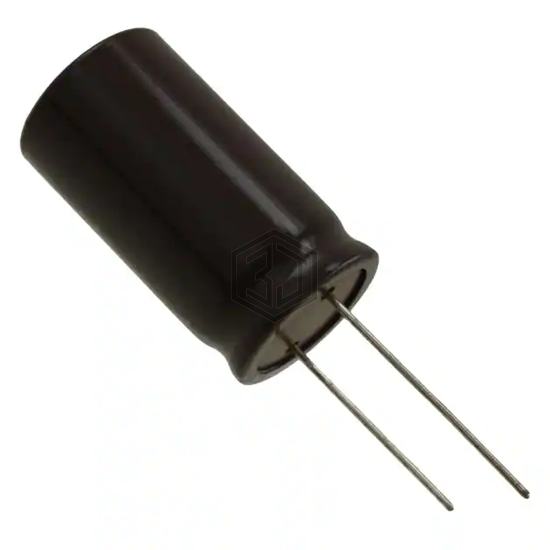

CAP ALUM 470UF 20% 200V RADIAL
UPT2D471MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 3,631
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.92 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH201VNN471MA20U | United Chemi-Con | CAP ALUM 470UF 20% 200V SNAP | 94% | View |
| LGN2D471MELZ30 | Nichicon | CAP ALUM 470UF 20% 200V SNAP | 92% | View |
| EGPD800ELL471ML20H | United Chemi-Con | CAP ALUM 470UF 20% 80V RADIAL | 74% | View |
| ELXM3B1VSN471MA35S | United Chemi-Con | CAP ALUM 470UF 20% 315V SNAP | 70% | View |
| 50YXG470MEFC12.5X20 | Rubycon | CAP ALUM 470UF 20% 50V RADIAL | 69% | View |
| UBT1K471MHD1TN | Nichicon | CAP ALUM 470UF 20% 80V RADIAL | 62% | View |
Submit your RFQ for UPT2D471MRD and get a quote within 24 hours.
