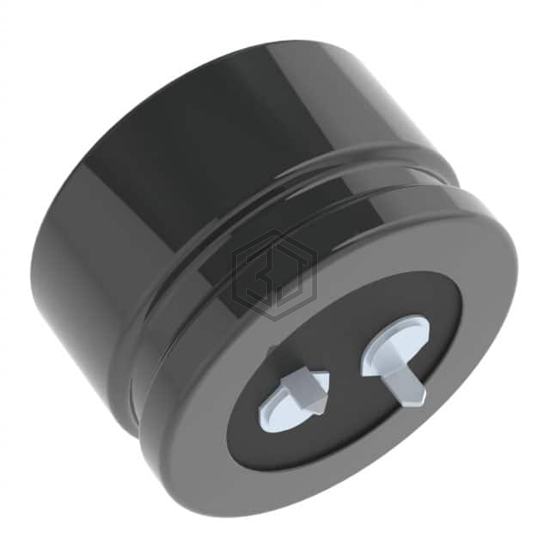

CAP ALUM 470UF 20% 200V SNAP
EKMH201VNN471MA20U is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 2,596
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 529mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | - |
| Ripple Current @ Low Frequency | 1.41 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.115 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2D471MELZ30 | Nichicon | CAP ALUM 470UF 20% 200V SNAP | 98% | View |
| UPT2D471MRD | Nichicon | CAP ALUM 470UF 20% 200V RADIAL | 94% | View |
| ELXM3B1VSN471MA35S | United Chemi-Con | CAP ALUM 470UF 20% 315V SNAP | 76% | View |
| B43508B9477M87 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 400V SNAP | 67% | View |
| 50YXG470MEFC12.5X20 | Rubycon | CAP ALUM 470UF 20% 50V RADIAL | 63% | View |
| UBT1K471MHD1TN | Nichicon | CAP ALUM 470UF 20% 80V RADIAL | 56% | View |
Submit your RFQ for EKMH201VNN471MA20U and get a quote within 24 hours.
