Panasonic Electronic Components

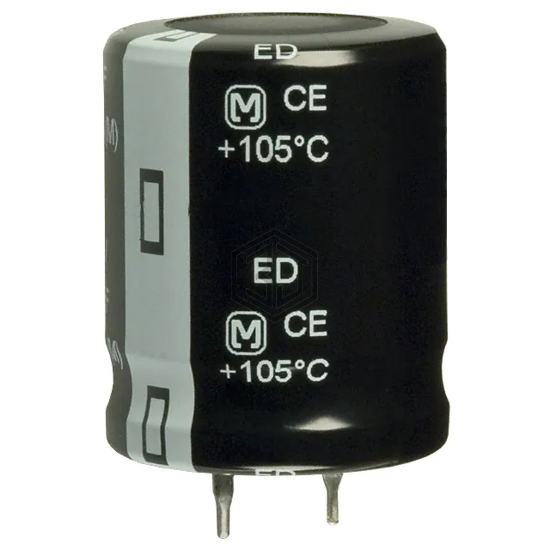

CAP ALUM 560UF 20% 200V SNAP
EET-ED2D561CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 8,210
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 266mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.14 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.05 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2D561CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200TXW560MEFR18X45 | Rubycon | CAP ALUM 560UF 20% 200V RADIAL | 90% | View |
| ALC80F561CB200 | KEMET | CAP ALUM 560UF 20% 200V SNAP | 89% | View |
| B43504A9567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 70% | View |
| B43504A567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 420V SNAP | 70% | View |
| EKZN630ELL561MK25S | United Chemi-Con | CAP ALUM 560UF 20% 63V RADIAL | 61% | View |
| EGQB350ELL561MK20H | United Chemi-Con | CAP ALUM 560UF 20% 35V RADIAL | 56% | View |
Submit your RFQ for EET-ED2D561CA and get a quote within 24 hours.
