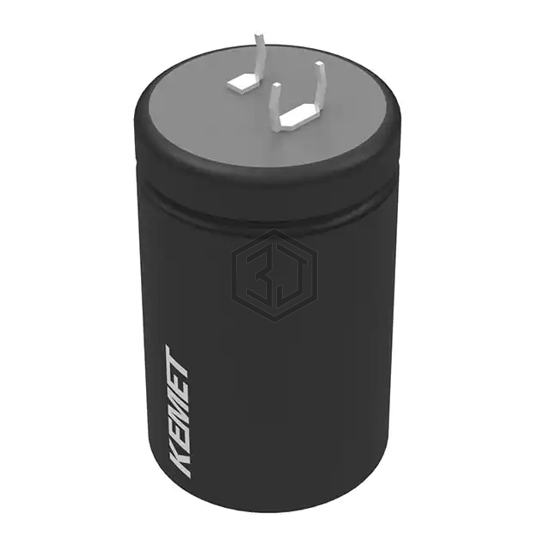

CAP ALUM 560UF 20% 200V SNAP
ALC80F561CB200 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In - 3 Lead.
In Stock: 9,135
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 376mOhm @ 100Hz |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.94 A @ 100 Hz |
| Ripple Current @ High Frequency | 4.41 A @ 10 kHz |
| Impedance | 225 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 3 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXJ161ELL561ML50S | United Chemi-Con | CAP ALUM 560UF 20% 160V RADIAL | 92% | View |
| 200TXW560MEFR18X45 | Rubycon | CAP ALUM 560UF 20% 200V RADIAL | 84% | View |
| B43504A9567M80 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 71% | View |
| B43508A9567M60 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 71% | View |
| B43504A9567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 71% | View |
| ALA8DC561DE400 | KEMET | CAP ALUM 560UF 20% 400V SNAP | 66% | View |
Submit your RFQ for ALC80F561CB200 and get a quote within 24 hours.
