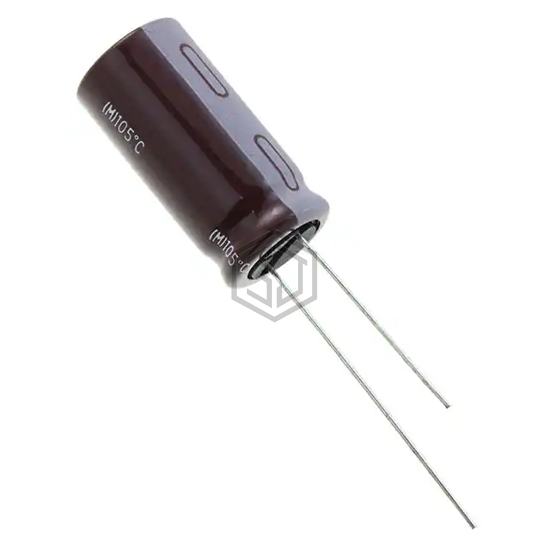

CAP ALUM 560UF 20% 63V RADIAL
EKZN630ELL561MK25S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 4,309
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.23 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.46 A @ 100 kHz |
| Impedance | 26 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80ZLH560MEFC16X25 | Rubycon | CAP ALUM 560UF 20% 80V RADIAL | 83% | View |
| ELXV800ELL561ML35S | United Chemi-Con | CAP ALUM 560UF 20% 80V RADIAL | 77% | View |
| 35ZLS560MEFC10X20 | Rubycon | CAP ALUM 560UF 20% 35V RADIAL | 72% | View |
| 200TXW560MEFR18X45 | Rubycon | CAP ALUM 560UF 20% 200V RADIAL | 70% | View |
| KY35VB561M10X25LL | United Chemi-Con | CAP ALUM 560UF 20% 35V RADIAL | 62% | View |
| EKXJ161ELL561ML50S | United Chemi-Con | CAP ALUM 560UF 20% 160V RADIAL | 55% | View |
Submit your RFQ for EKZN630ELL561MK25S and get a quote within 24 hours.
