Panasonic Electronic Components

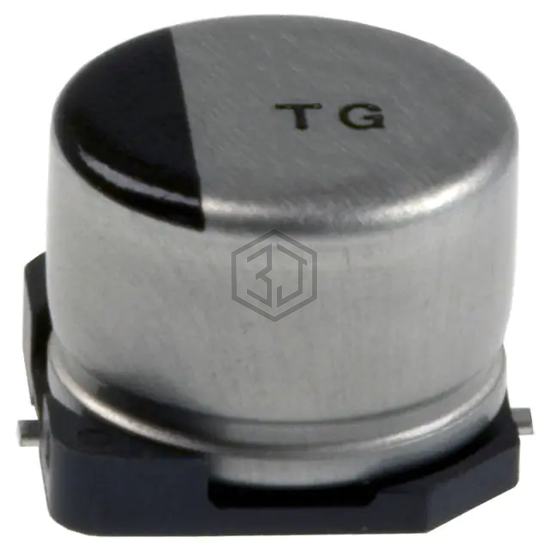

CAP ALUM 10UF 20% 63V SMD
EEE-TG1J100P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 8,731
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 2.2Ohm @ 100kHz |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 35.75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 55 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV-TG1J100P | Panasonic Electronic Components | CAP ALUM 10UF 20% 63V SMD | 100% | View |
| EMVH630ADA100MH63G | United Chemi-Con | CAP ALUM 10UF 20% 63V SMD | 95% | View |
| 50THV10M6.3X6.1 | Rubycon | CAP ALUM 10UF 20% 50V SMD | 84% | View |
| EEE-TG2A100P | Panasonic Electronic Components | CAP ALUM 10UF 20% 100V SMD | 74% | View |
| ULT2G100MNL1GS | Nichicon | CAP ALUM 10UF 20% 400V SMD | 63% | View |
| UUB2C100MNL1GS | Nichicon | CAP ALUM 10UF 20% 160V SMD | 56% | View |
