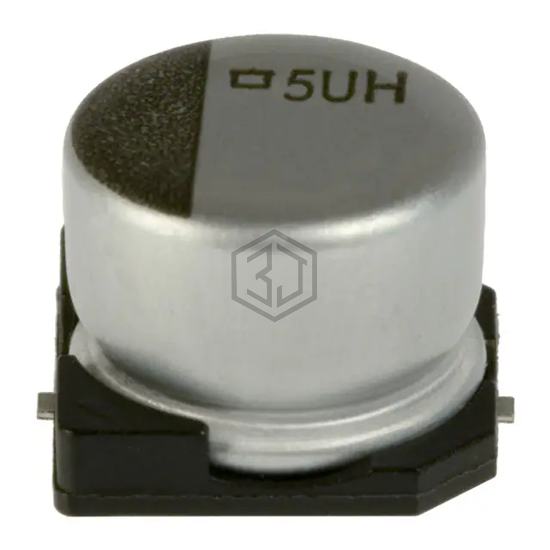

CAP ALUM 10UF 20% 63V SMD
EMVH630ADA100MH63G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 10UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 2,419
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 2000mOhm @ 100kHz |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 39.6 mA @ 120 Hz |
| Ripple Current @ High Frequency | 60 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.248" (6.30mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TG1J100P | Panasonic Electronic Components | CAP ALUM 10UF 20% 63V SMD | 95% | View |
| UCZ1J100MCS1GS | Nichicon | CAP ALUM 10UF 20% 63V SMD | 93% | View |
| 50THV10M6.3X6.1 | Rubycon | CAP ALUM 10UF 20% 50V SMD | 84% | View |
| EEE-TG1H100P | Panasonic Electronic Components | CAP ALUM 10UF 20% 50V SMD | 80% | View |
| UCJ1H100MCL1GS | Nichicon | CAP ALUM 10UF 20% 50V SMD | 78% | View |
| UWH1H100MCL1GS | Nichicon | CAP ALUM 10UF 20% 50V SMD | 69% | View |
