CAP ALUM 10UF 20% 400V SMD

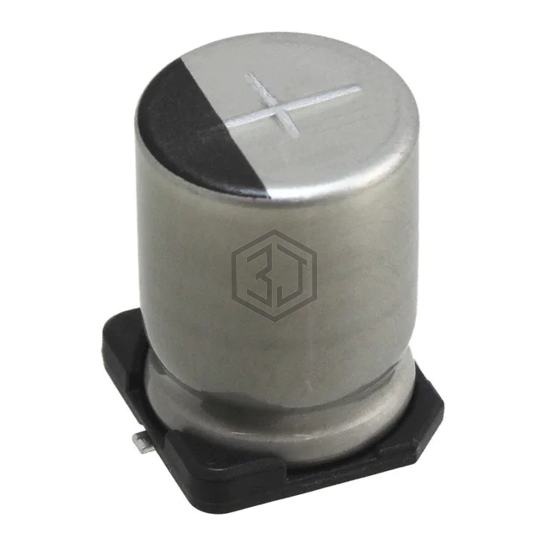

ULT2G100MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 400V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 400 V, package / case Radial, Can - SMD.
In Stock: 3,639
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 50 mA @ 120 Hz |
| Ripple Current @ High Frequency | 75 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 106UVK050MEW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 50V SMD | 79% | View |
| EEE-TG2A100P | Panasonic Electronic Components | CAP ALUM 10UF 20% 100V SMD | 75% | View |
| UUB2C100MNL1GS | Nichicon | CAP ALUM 10UF 20% 160V SMD | 71% | View |
| RVT-35V100ME61U-R2 | Elna America | CAP ALUM 10UF 20% 35V SMD | 66% | View |
| EEE-TG1J100P | Panasonic Electronic Components | CAP ALUM 10UF 20% 63V SMD | 63% | View |
| 35THV10M6.3X6.1 | Rubycon | CAP ALUM 10UF 20% 35V SMD | 56% | View |
Submit your RFQ for ULT2G100MNL1GS and get a quote within 24 hours.
