Panasonic Electronic Components
CAP ALUM 22UF 20% 100V SMD

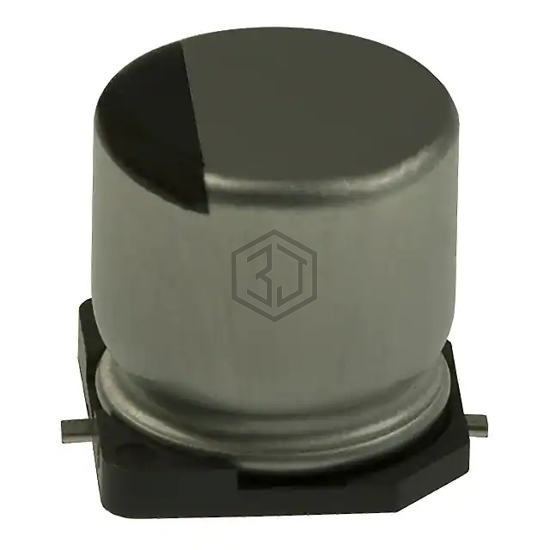

EEE-HA2A220UP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 8,402
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz |
| Ripple Current @ High Frequency | 93.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEE-HA2A220UP is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AHA226M2A24B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 100V SMD | 100% | View |
| EEE-HA1E220P | Panasonic Electronic Components | CAP ALUM 22UF 20% 25V SMD | 79% | View |
| ULR2E220MNL1GS | Nichicon | CAP ALUM 22UF 20% 250V SMD | 78% | View |
| AVES226M50D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 50V SMD | 72% | View |
| AVEZ226M50D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 50V SMD | 72% | View |
| 35SJV22M6.3X6.1 | Rubycon | CAP ALUM 22UF 20% 35V SMD | 64% | View |
Submit your RFQ for EEE-HA2A220UP and get a quote within 24 hours.
