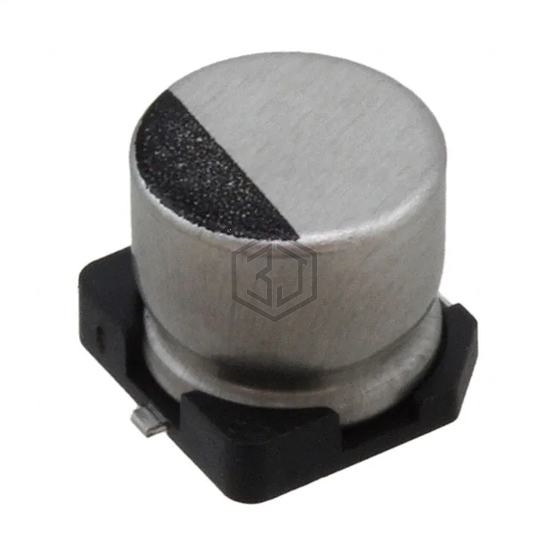

CAP ALUM 22UF 20% 35V SMD
35SJV22M6.3X6.1 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 22UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,540
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 44 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AVGA226M35D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 35V SMD | 100% | View |
| UUT1E220MCL1GS | Nichicon | CAP ALUM 22UF 20% 25V SMD | 81% | View |
| ULR2E220MNL1GS | Nichicon | CAP ALUM 22UF 20% 250V SMD | 64% | View |
| ULH2D220MNL1GS | Nichicon | CAP ALUM 22UF 20% 200V SMD | 59% | View |
| AVES226M16C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 16V SMD | 57% | View |
| UZG1C220MCL1GB | Nichicon | CAP ALUM 22UF 20% 16V SMD | 54% | View |
