Cornell Dubilier Electronics (CDE)
CAP ALUM 22UF 20% 50V SMD

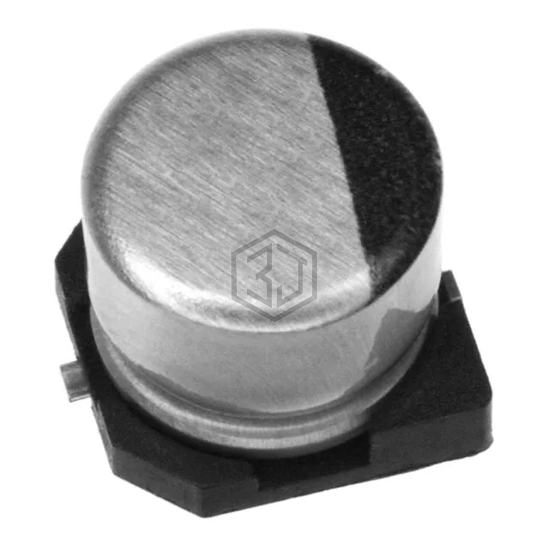

AVEZ226M50D16T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 1,722
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 56 mA @ 120 Hz |
| Ripple Current @ High Frequency | 70 mA @ 100 kHz |
| Impedance | 3 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AVES226M50D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 50V SMD | 96% | View |
| AHA226M50E16T-F | Cornell Dubilier Knowles | CAP ALUM 22UF 20% 50V SMD | 82% | View |
| EMVY500ADA220MF55G | United Chemi-Con | CAP ALUM 22UF 20% 50V SMD | 81% | View |
| CEE1J220MCB0862 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 70% | View |
| UWZ1E220MCL1GS | Nichicon | CAP ALUM 22UF 20% 25V SMD | 65% | View |
| UUD1A220MCL1GS | Nichicon | CAP ALUM 22UF 20% 10V SMD | 59% | View |
Submit your RFQ for AVEZ226M50D16T-F and get a quote within 24 hours.
