Panasonic Electronic Components
CAP ALUM 22UF 20% 63V SMD

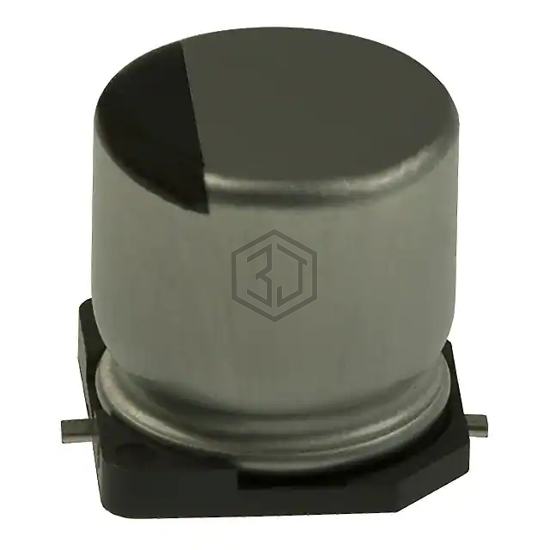

EEE-HA1J220P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 3,681
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | 51 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEE-HA1J220P is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-HBC220UAR | Panasonic Electronic Components | CAP ALUM 22UF 20% 16V SMD | 78% | View |
| UZG1V220MCL1GB | Nichicon | CAP ALUM 22UF 20% 35V SMD | 76% | View |
| AVES226M25D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 25V SMD | 74% | View |
| CEE1J220MCB0862 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 63% | View |
| AVES226M35D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 35V SMD | 62% | View |
| UUD1A220MCL1GS | Nichicon | CAP ALUM 22UF 20% 10V SMD | 62% | View |
Submit your RFQ for EEE-HA1J220P and get a quote within 24 hours.
