ALUMINUM ELECTROLYTIC CAPACITORS

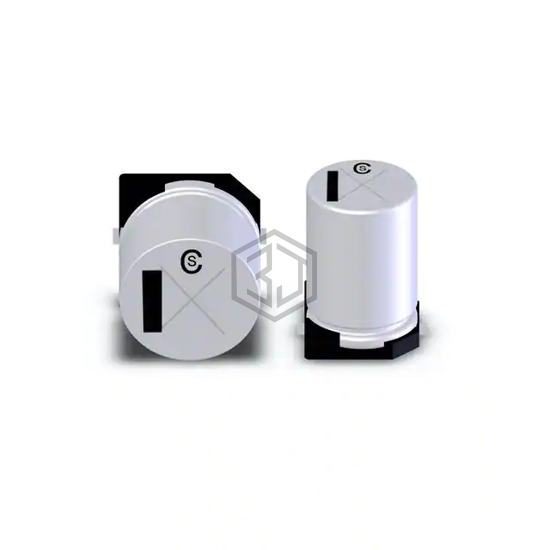

CEE1J220MCB0862 is a Aluminum Electrolytic Capacitors manufactured by Chinsan (Elite). ALUMINUM ELECTROLYTIC CAPACITORS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 3,857
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 60 mA @ 120 Hz |
| Ripple Current @ High Frequency | 120 mA @ 10 kHz |
| Impedance | 1.2 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.260" (6.60mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AVES226M50D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 50V SMD | 78% | View |
| AVEZ226M50D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 50V SMD | 70% | View |
| AVES226M35D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 35V SMD | 65% | View |
| ATB226M035 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 35V SMD | 63% | View |
| EMVY500ADA220MF55G | United Chemi-Con | CAP ALUM 22UF 20% 50V SMD | 61% | View |
| UUD1A220MCL1GS | Nichicon | CAP ALUM 22UF 20% 10V SMD | 59% | View |
Submit your RFQ for CEE1J220MCB0862 and get a quote within 24 hours.
