Panasonic Electronic Components
CAP ALUM 22UF 20% 16V SMD

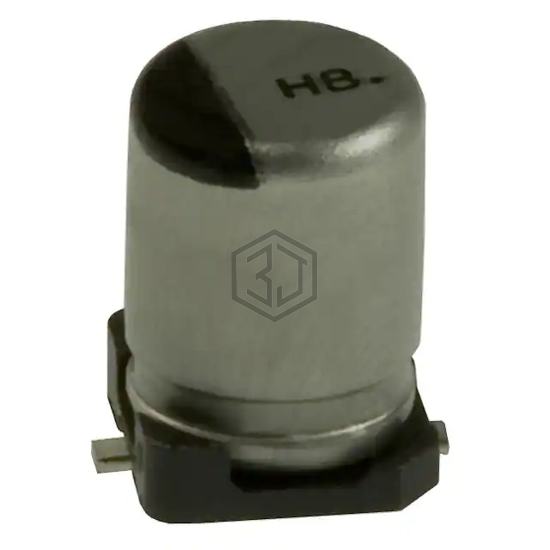

EEE-HBC220UAR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 7,506
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 29.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 50.15 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWZ1E220MCL1GS | Nichicon | CAP ALUM 22UF 20% 25V SMD | 77% | View |
| UZG1V220MCL1GB | Nichicon | CAP ALUM 22UF 20% 35V SMD | 72% | View |
| UUD1A220MCL1GS | Nichicon | CAP ALUM 22UF 20% 10V SMD | 71% | View |
| EMVY500ADA220MF55G | United Chemi-Con | CAP ALUM 22UF 20% 50V SMD | 70% | View |
| EDH226M6R3A9BAA | KEMET | CAP ALUM 22UF 20% 6.3V SMD | 66% | View |
| AVES226M35D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 35V SMD | 58% | View |
