Panasonic Electronic Components
CAP ALUM 330UF 20% 100V SMD

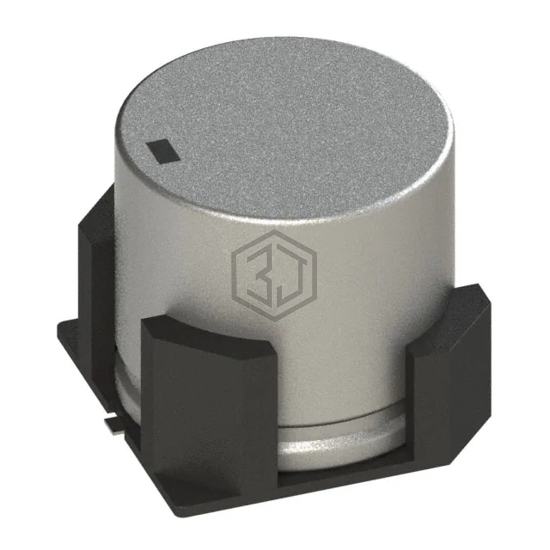

EEE-FK2A331AV is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 330UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 5,538
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 153mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 687.75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 917 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.673" (17.10mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1H331AQ | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V SMD | 78% | View |
| EEE-FP1A331AL | Panasonic Electronic Components | CAP ALUM 330UF 20% 10V SMD | 72% | View |
| UCL1V331MNL1GS | Nichicon | CAP ALUM 330UF 20% 35V SMD | 69% | View |
| UCM1H331MNL1GS | Nichicon | CAP ALUM 330UF 20% 50V SMD | 68% | View |
| UUE1E331MNS1MS | Nichicon | CAP ALUM 330UF 20% 25V SMD | 67% | View |
| EMZJ250ADA331MHA0G | United Chemi-Con | CAP ALUM 330UF 20% 25V SMD | 66% | View |
