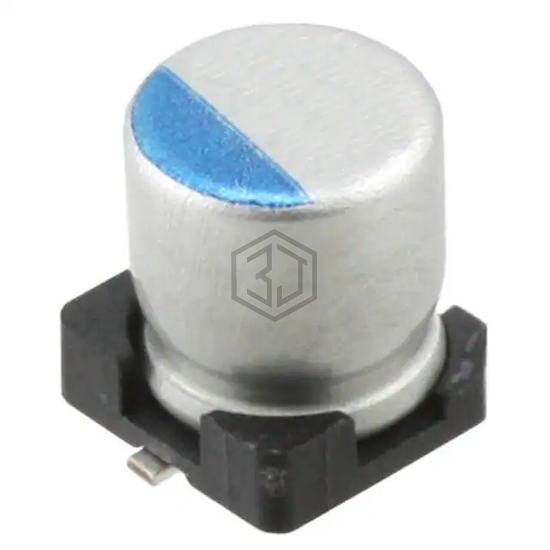

CAP ALUM 330UF 20% 35V SMD
UCL1V331MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 5,072
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 595 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.19 A @ 100 kHz |
| Impedance | 60 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUE1E331MNS1MS | Nichicon | CAP ALUM 330UF 20% 25V SMD | 75% | View |
| EEE-FK1H331AQ | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V SMD | 74% | View |
| EMZJ250ADA331MHA0G | United Chemi-Con | CAP ALUM 330UF 20% 25V SMD | 74% | View |
| UCM1H331MNL1GS | Nichicon | CAP ALUM 330UF 20% 50V SMD | 70% | View |
| EEE-FP1A331AL | Panasonic Electronic Components | CAP ALUM 330UF 20% 10V SMD | 69% | View |
| EEE-FK2A331AV | Panasonic Electronic Components | CAP ALUM 330UF 20% 100V SMD | 69% | View |
