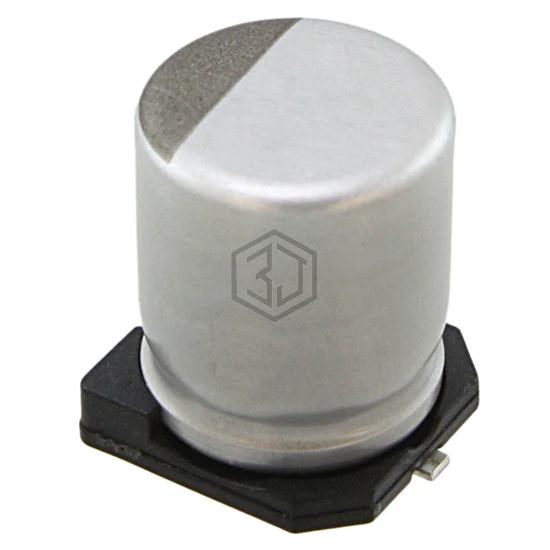

CAP ALUM 330UF 20% 25V SMD
EMZJ250ADA331MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 3,917
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 425 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCL1E331MNL1GS | Nichicon | CAP ALUM 330UF 20% 25V SMD | 100% | View |
| UUE1E331MNS1MS | Nichicon | CAP ALUM 330UF 20% 25V SMD | 93% | View |
| AFK337M25F24T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 25V SMD | 90% | View |
| UCM1H331MNL1GS | Nichicon | CAP ALUM 330UF 20% 50V SMD | 76% | View |
| EEE-FTC331XAL | Panasonic Electronic Components | CAP ALUM 330UF 20% 16V SMD | 76% | View |
| UCL1V331MNL1GS | Nichicon | CAP ALUM 330UF 20% 35V SMD | 74% | View |
Submit your RFQ for EMZJ250ADA331MHA0G and get a quote within 24 hours.
