Panasonic Electronic Components

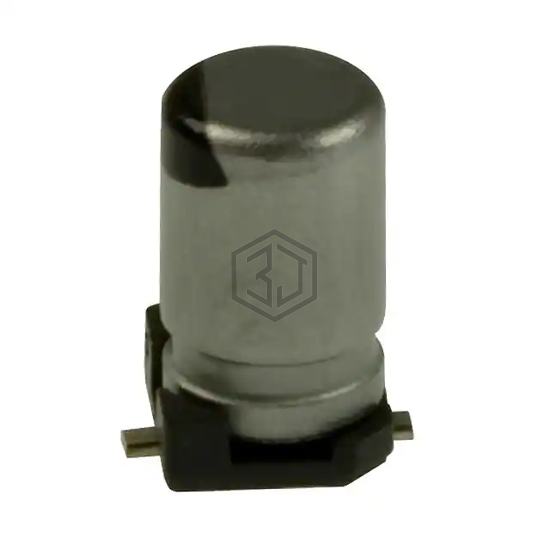

CAP ALUM 10UF 20% 16V SMD
EEE-1CS100SR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 5,551
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 28 mA @ 120 Hz |
| Ripple Current @ High Frequency | 34 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.130" L x 0.130" W (3.30mm x 3.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEE-1CS100SR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16SKV10M4X5.5 | Rubycon | CAP ALUM 10UF 20% 16V SMD | 89% | View |
| UUP1E100MCL1GS | Nichicon | CAP ALUM 10UF 20% 25V SMD | 81% | View |
| 50THV10M6.3X6.1 | Rubycon | CAP ALUM 10UF 20% 50V SMD | 59% | View |
| EMVH630ADA100MH63G | United Chemi-Con | CAP ALUM 10UF 20% 63V SMD | 57% | View |
| AFK106M16B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 16V SMD | 56% | View |
| EMVY250ADA100ME55G | United Chemi-Con | CAP ALUM 10UF 20% 25V SMD | 55% | View |
Submit your RFQ for EEE-1CS100SR and get a quote within 24 hours.
