Panasonic Electronic Components

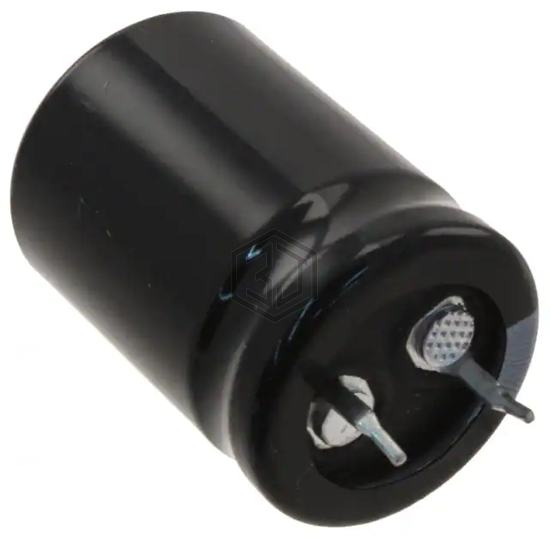

CAP ALUM 82UF 20% 450V SNAP
ECO-S2WB820BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 82UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 7,068
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 2.022Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 560 mA @ 120 Hz |
| Ripple Current @ High Frequency | 638.4 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2WB820BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LAS2W820MELA25 | Nichicon | CAP ALUM 82UF 20% 450V SNAP | 96% | View |
| 420KXF82MEFC25X20 | Rubycon | CAP ALUM 82UF 20% 420V SNAP | 93% | View |
| LGX2W820MELZ25 | Nichicon | CAP ALUM 82UF 20% 450V SNAP | 92% | View |
| MAL225917829E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 450V SNAP | 77% | View |
| 400MXG82MEFCSN22X25 | Rubycon | CAP ALUM 82UF 20% 400V SNAP | 76% | View |
| MAL219367829E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 450V SNAP | 76% | View |
Submit your RFQ for ECO-S2WB820BA and get a quote within 24 hours.
