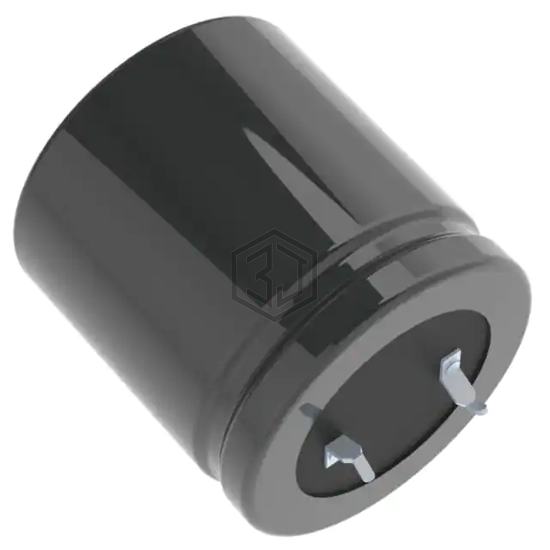

CAP ALUM 82UF 20% 450V SNAP
LAS2W820MELA25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 8,128
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 610 mA @ 120 Hz |
| Ripple Current @ High Frequency | 701.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215926829E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 400V SNAP | 95% | View |
| B43504A0826M007 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 420V SNAP | 94% | View |
| EPAG421ELL820MU40S | United Chemi-Con | CAP ALUM 82UF 20% 420V RADIAL | 87% | View |
| MAL219367829E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 450V SNAP | 81% | View |
| 400MXG82MEFCSN22X25 | Rubycon | CAP ALUM 82UF 20% 400V SNAP | 80% | View |
| 400BXW82MEFR14.5X35 | Rubycon | CAP ALUM 82UF 20% 400V RADIAL | 73% | View |
Submit your RFQ for LAS2W820MELA25 and get a quote within 24 hours.
