Panasonic Electronic Components
CAP ALUM 560UF 20% 200V SNAP

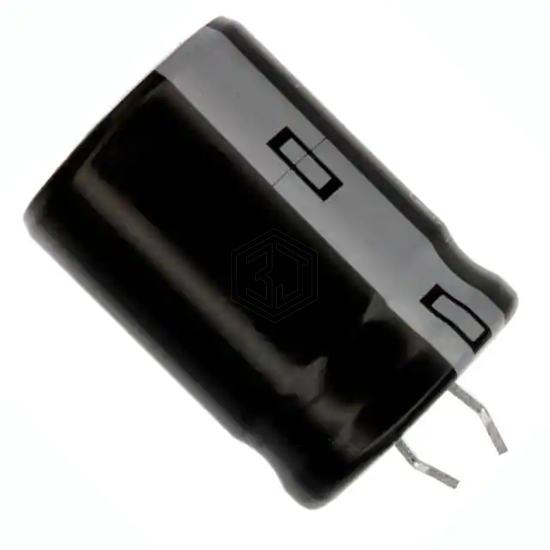

ECO-S2DA561BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 6,920
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 296mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2DA561BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200TXW560MEFR18X45 | Rubycon | CAP ALUM 560UF 20% 200V RADIAL | 92% | View |
| ALC80F561CB200 | KEMET | CAP ALUM 560UF 20% 200V SNAP | 76% | View |
| EKZN630ELL561MK25S | United Chemi-Con | CAP ALUM 560UF 20% 63V RADIAL | 70% | View |
| EKXJ161ELL561ML50S | United Chemi-Con | CAP ALUM 560UF 20% 160V RADIAL | 70% | View |
| 80ZLH560MEFC16X25 | Rubycon | CAP ALUM 560UF 20% 80V RADIAL | 65% | View |
| 35ZLS560MEFC10X20 | Rubycon | CAP ALUM 560UF 20% 35V RADIAL | 61% | View |
Submit your RFQ for ECO-S2DA561BA and get a quote within 24 hours.
