Panasonic Electronic Components
CAP ALUM 6800UF 20% 80V SNAP

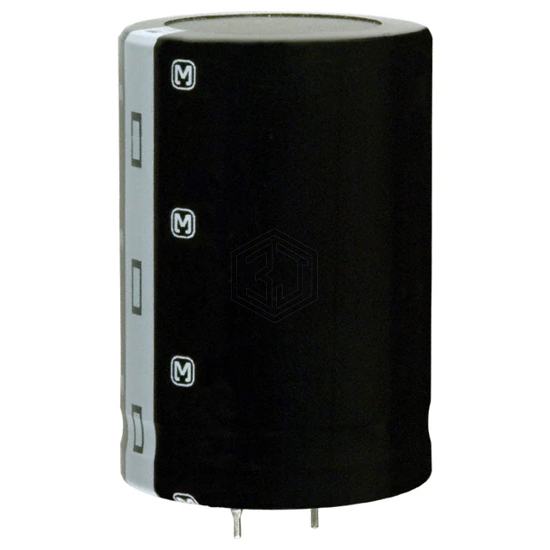

ECO-S1KA682EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 6800UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 6,820
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 41mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.485 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1KA682EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH630VSN682MA40S | United Chemi-Con | CAP ALUM 6800UF 20% 63V SNAP | 90% | View |
| EKMH630VNN682MA40U | United Chemi-Con | CAP ALUM 6800UF 20% 63V SNAP | 90% | View |
| 381LX682M050J052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 50V SNAP | 78% | View |
| MAL205847682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 40V SNAP | 70% | View |
| EEU-FM0J682B | Panasonic Electronic Components | CAP ALUM 6800UF 20% 6.3V RADIAL | 69% | View |
| SLP682M025A3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 25V SNAP | 58% | View |
Submit your RFQ for ECO-S1KA682EA and get a quote within 24 hours.
