Cornell Dubilier Electronics (CDE)
CAP ALUM 6800UF 20% 50V SNAP

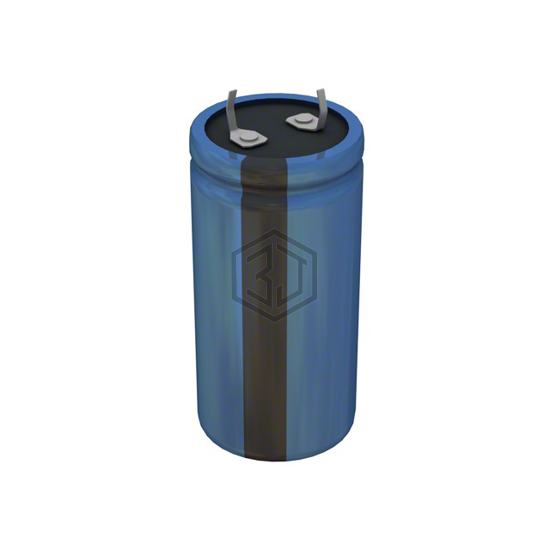

381LX682M050J052 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 6800UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 2,288
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.8 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH630VSN682MA40S | United Chemi-Con | CAP ALUM 6800UF 20% 63V SNAP | 87% | View |
| EKMH630VNN682MA40U | United Chemi-Con | CAP ALUM 6800UF 20% 63V SNAP | 87% | View |
| EEU-FM0J682B | Panasonic Electronic Components | CAP ALUM 6800UF 20% 6.3V RADIAL | 77% | View |
| MAL215882682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 80V SNAP | 71% | View |
| SLP682M025A3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 25V SNAP | 66% | View |
| MAL211814682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 10V AXIAL | 52% | View |
Submit your RFQ for 381LX682M050J052 and get a quote within 24 hours.
