Panasonic Electronic Components

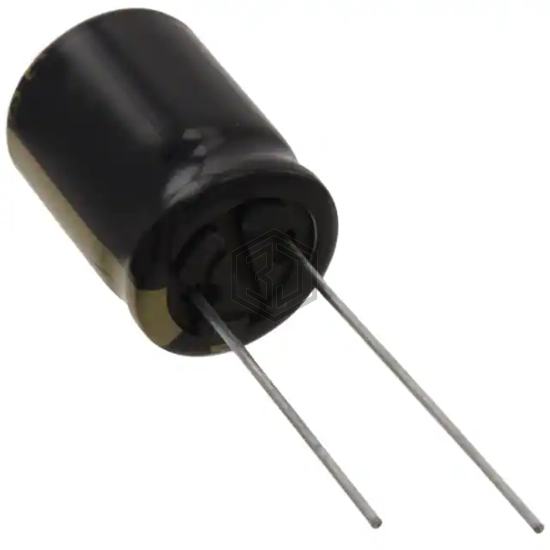

CAP ALUM 6800UF 20% 6.3V RADIAL
EEU-FM0J682B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 6800UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 2,028
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.056 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.82 A @ 100 kHz |
| Impedance | 14 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX682M050J052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 50V SNAP | 77% | View |
| EKMH630VSN682MA40S | United Chemi-Con | CAP ALUM 6800UF 20% 63V SNAP | 72% | View |
| EKMH630VNN682MA40U | United Chemi-Con | CAP ALUM 6800UF 20% 63V SNAP | 72% | View |
| SLP682M025A3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 25V SNAP | 67% | View |
| EKMG6R3ELL682MK25S | United Chemi-Con | CAP ALUM 6800UF 20% 6.3V RADIAL | 57% | View |
| EKMQ6R3ELL682MK25S | United Chemi-Con | CAP ALUM 6800UF 20% 6.3V RADIAL | 57% | View |
Submit your RFQ for EEU-FM0J682B and get a quote within 24 hours.
