Panasonic Electronic Components

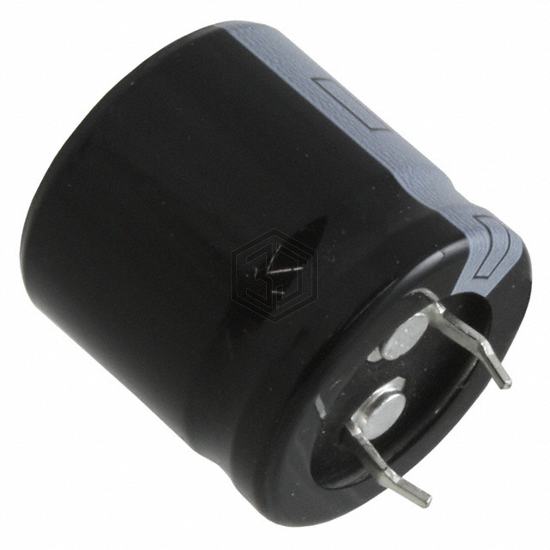

CAP ALUM 6800UF 20% 25V SNAP
ECO-S1EA682CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 6800UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 4,201
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 73mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.76 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1EA682CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41505A7688M007 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 35V SNAP | 85% | View |
| EEU-FC1A682S | Panasonic Electronic Components | CAP ALUM 6800UF 20% 10V RADIAL | 78% | View |
| MAL225054682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 10V RADIAL | 76% | View |
| 16YXH6800MEFC16X40 | Rubycon | CAP ALUM 6800UF 20% 16V RADIAL | 73% | View |
| EEU-FR0J682SB | Panasonic Electronic Components | CAP ALUM 6800UF 20% 6.3V RADIAL | 72% | View |
| MAL211845682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 16V T/H | 72% | View |
Submit your RFQ for ECO-S1EA682CA and get a quote within 24 hours.
