Panasonic Electronic Components

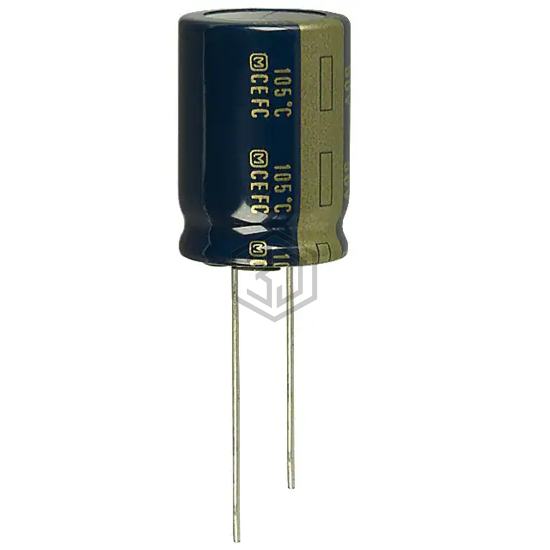

CAP ALUM 6800UF 20% 10V RADIAL
EEU-FC1A682S is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 6800UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 429
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.329 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.74 A @ 100 kHz |
| Impedance | 20 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225054682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 10V RADIAL | 97% | View |
| ELBG250ELL662ALP1S | United Chemi-Con | CAP ALUM 6600UF 25V RADIAL | 69% | View |
| ELBG350ELL672AM40S | United Chemi-Con | CAP ALUM 6700UF 35V RADIAL | 66% | View |
| ELBG350EC3672AM40S | United Chemi-Con | CAP ALUM 6700UF 35V RADIAL | 66% | View |
| 604D642G016HT7 | Vishay Sprague | CAP ALUM 6400UF 16V AXIAL | 65% | View |
| ELBK350ELL662AL40S | United Chemi-Con | CAP ALUM 6600UF 35V RADIAL | 62% | View |
Submit your RFQ for EEU-FC1A682S and get a quote within 24 hours.
