Vishay Beyschlag/Draloric/BC Components

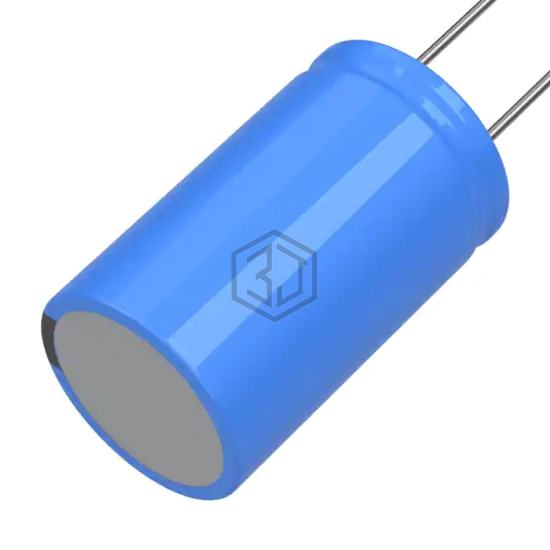

CAP ALUM 6800UF 20% 10V RADIAL
MAL225054682E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 6800UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 4,701
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Audio, Automotive |
| Ripple Current @ Low Frequency | 2.196 A @ 100 Hz |
| Ripple Current @ High Frequency | 2.89 A @ 100 kHz |
| Impedance | 19 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1A682SB | Panasonic Electronic Components | CAP ALUM 6800UF 20% 10V RADIAL | 97% | View |
| EEU-FC1A682S | Panasonic Electronic Components | CAP ALUM 6800UF 20% 10V RADIAL | 97% | View |
| ELBG350ELL672AM40S | United Chemi-Con | CAP ALUM 6700UF 35V RADIAL | 65% | View |
| ELBG350EC3672AM40S | United Chemi-Con | CAP ALUM 6700UF 35V RADIAL | 65% | View |
| ELBK350ELL662AL40S | United Chemi-Con | CAP ALUM 6600UF 35V RADIAL | 62% | View |
| MAL211845682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 16V T/H | 61% | View |
Submit your RFQ for MAL225054682E3 and get a quote within 24 hours.
