Panasonic Electronic Components

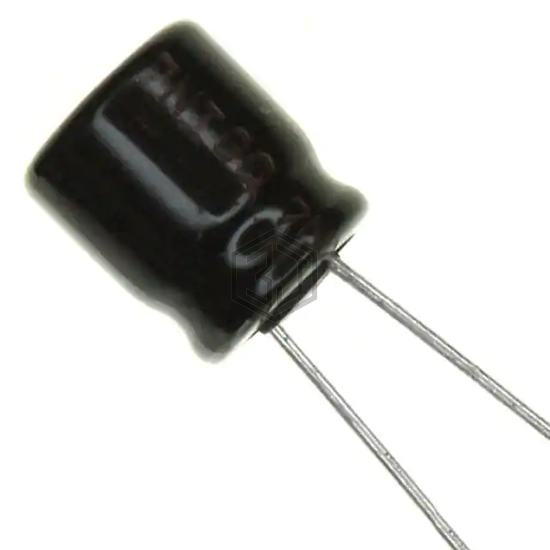

CAP ALUM 22UF 20% 16V RADIAL
ECE-A1CKN220 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 2,632
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 39 mA @ 120 Hz |
| Ripple Current @ High Frequency | 66.3 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| USL1C220MDD | Nichicon | CAP ALUM 22UF 20% 16V RADIAL | 97% | View |
| MAL213826229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 25V AXIAL | 67% | View |
| 35MH522MEFCTZ6.3X5 | Rubycon | CAP ALUM 22UF 20% 35V RADIAL | 65% | View |
| EEA-FC1E220H | Panasonic Electronic Components | CAP ALUM 22UF 20% 25V RADIAL | 56% | View |
| UKZ1H220MPM | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 56% | View |
| 510D226M050CC4D | Vishay Sprague | CAP ALUM 22UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for ECE-A1CKN220 and get a quote within 24 hours.
