Panasonic Electronic Components

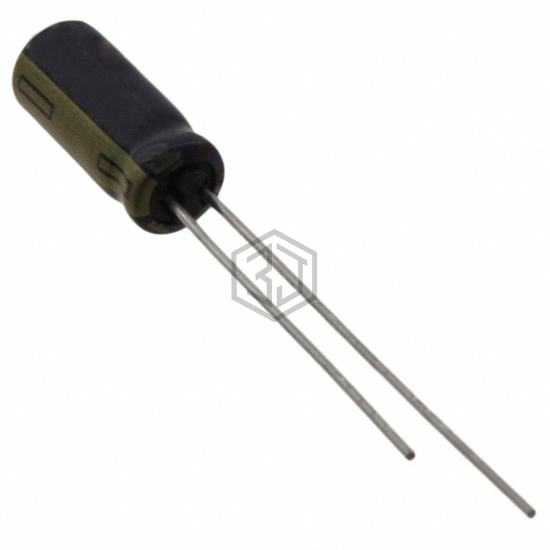

CAP ALUM 22UF 20% 25V RADIAL
EEA-FC1E220H is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,537
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 78 mA @ 120 Hz |
| Ripple Current @ High Frequency | 120 mA @ 100 kHz |
| Impedance | 950 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 630D226M025BB2T | Vishay Sprague | CAP ALUM 22UF 20% 25V AXIAL | 100% | View |
| UBW1K220MPD1TD | Nichicon | CAP ALUM 22UF 20% 80V RADIAL | 71% | View |
| EKMQ101EC3220MF11D | United Chemi-Con | CAP ALUM 22UF 20% 100V RADIAL | 67% | View |
| EKMG101ELL220MHB5D | United Chemi-Con | CAP ALUM 22UF 20% 100V RADIAL | 67% | View |
| 517D226M063AA6AE3 | Vishay Sprague | CAP ALUM 22UF 20% 63V RADIAL | 66% | View |
| ELXZ630ETC220MFB5D | United Chemi-Con | CAP ALUM 22UF 20% 63V RADIAL | 63% | View |
