CAP ALUM 22UF 20% 35V RADIAL

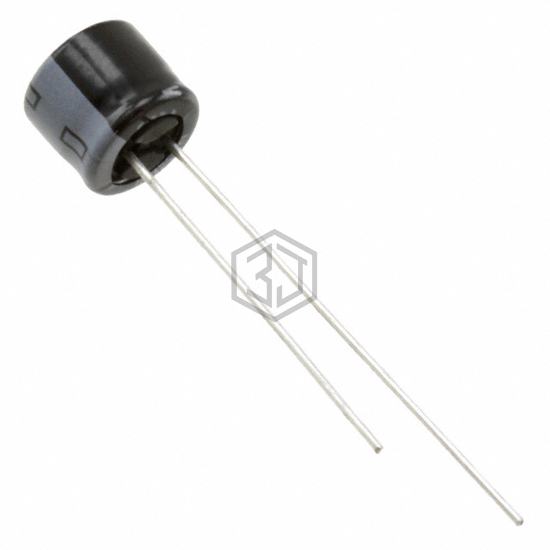

35MH522MEFCTZ6.3X5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 22UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,617
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 48 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213826229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 25V AXIAL | 78% | View |
| 510D226M050CC4D | Vishay Sprague | CAP ALUM 22UF 20% 50V RADIAL | 77% | View |
| EEA-FC1E220H | Panasonic Electronic Components | CAP ALUM 22UF 20% 25V RADIAL | 70% | View |
| 50YXF22MEFCTA5X11 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 68% | View |
| UBT1K220MPD8TD | Nichicon | CAP ALUM 22UF 20% 80V RADIAL | 57% | View |
| MAL213828229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 63V AXIAL | 52% | View |
Submit your RFQ for 35MH522MEFCTZ6.3X5 and get a quote within 24 hours.
