Panasonic Electronic Components

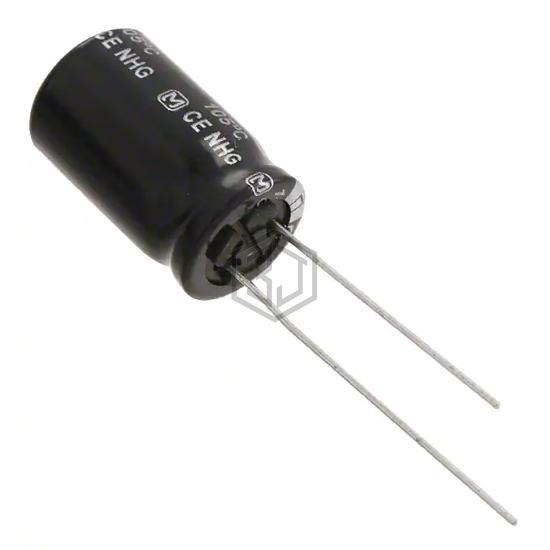

CAP ALUM 22UF 20% 400V RADIAL
ECA-2GHG220B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 1,200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 145 mA @ 120 Hz |
| Ripple Current @ High Frequency | 217.5 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ401ELL220MK25S | United Chemi-Con | CAP ALUM 22UF 20% 400V RADIAL | 96% | View |
| UPM2V220MHD | Nichicon | CAP ALUM 22UF 20% 350V RADIAL | 93% | View |
| UBT2V220MHD | Nichicon | CAP ALUM 22UF 20% 350V RADIAL | 92% | View |
| 450QXW22MEFR8X45 | Rubycon | CAP ALUM 22UF 20% 450V RADIAL | 74% | View |
| MAL214262229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 200V RADIAL | 71% | View |
| UCY2E220MPD1TD | Nichicon | CAP ALUM 22UF 20% 250V RADIAL | 58% | View |
