CAP ALUM 22UF 20% 350V RADIAL

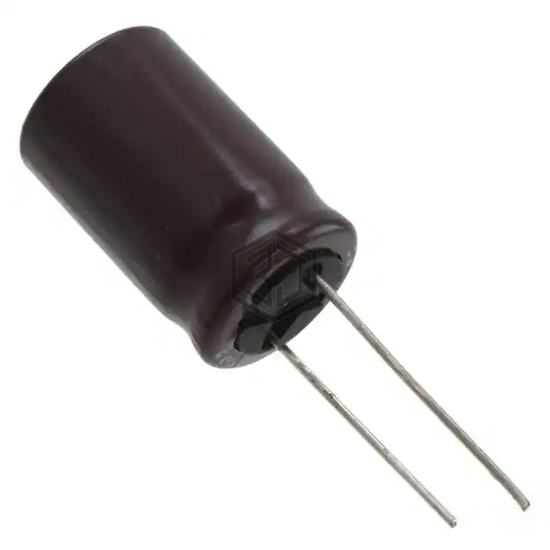

UPM2V220MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 2,309
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2V220MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ401ELL220MK25S | United Chemi-Con | CAP ALUM 22UF 20% 400V RADIAL | 93% | View |
| KMG250VB22RM12X20LL | United Chemi-Con | CAP ALUM 22UF 20% 250V RADIAL | 86% | View |
| MAL214262229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 200V RADIAL | 75% | View |
| 450QXW22MEFR8X45 | Rubycon | CAP ALUM 22UF 20% 450V RADIAL | 73% | View |
| UCY2E220MPD1TD | Nichicon | CAP ALUM 22UF 20% 250V RADIAL | 65% | View |
| 226KBM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 50V RADIAL | 60% | View |
Submit your RFQ for UPM2V220MHD and get a quote within 24 hours.
