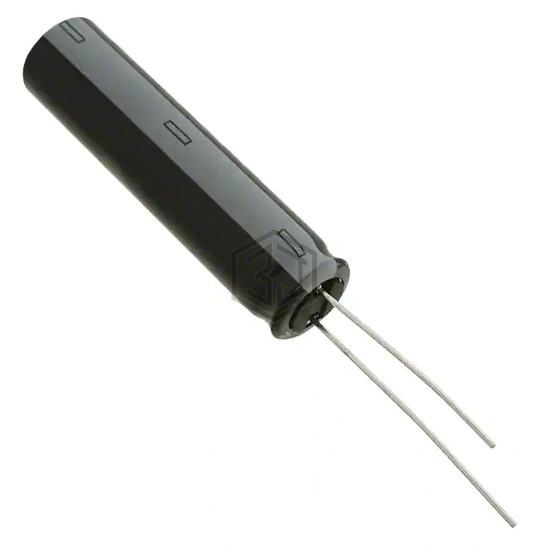

CAP ALUM 22UF 20% 450V RADIAL
450QXW22MEFR8X45 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 22UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 1,098
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 230 mA @ 120 Hz |
| Ripple Current @ High Frequency | 345 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420TXW22MEFC8X50 | Rubycon | CAP ALUM 22UF 20% 420V RADIAL TH | 94% | View |
| EKXJ451ELL220MJ35S | United Chemi-Con | CAP ALUM 22UF 20% 450V RADIAL | 84% | View |
| UCY2H220MHD3TN | Nichicon | CAP ALUM 22UF 20% 500V RADIAL | 80% | View |
| EKMQ401ELL220MK25S | United Chemi-Con | CAP ALUM 22UF 20% 400V RADIAL | 79% | View |
| UCY2E220MPD1TD | Nichicon | CAP ALUM 22UF 20% 250V RADIAL | 75% | View |
| MAL214262229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 200V RADIAL | 56% | View |
Submit your RFQ for 450QXW22MEFR8X45 and get a quote within 24 hours.
