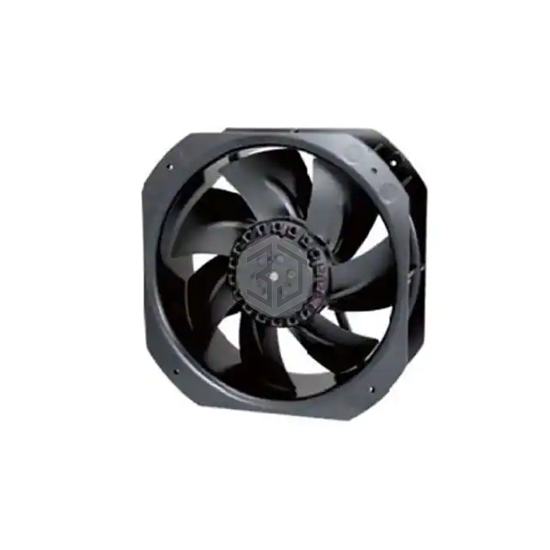

AC FAN, IP69K, 225X225X80MM, 230
OA225AP-22-1WB1869K is a AC Fans manufactured by Orion Fans. AC FAN, IP69K, 225X225X80MM, 230. Key specifications: operating temperature -22 ~ 176°F (-30 ~ 80°C), voltage - rated 230VAC, size / dimension Square - 225mm L x 225mm H, termination 2 Wire Leads.
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 230VAC |
| Size / Dimension | Square - 225mm L x 225mm H |
| Width | 80.00mm |
| Air Flow | 620.0 CFM (17.36m³/min) |
| Static Pressure | 0.740 in H2O (184.3 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Capacitor, Thermal Overload Protector (TOP) |
| Noise | 66.0dB |
| Power (Watts) | 80.0W |
| RPM | 3100 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | IP69K - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -22 ~ 176°F (-30 ~ 80°C) |
| Approval Agency | CE, cURus, TUV, UR |
| Weight | 4.8 lbs (2.2 kg) |
Submit your RFQ for OA225AP-22-1WB1869K and get a quote within 24 hours.
