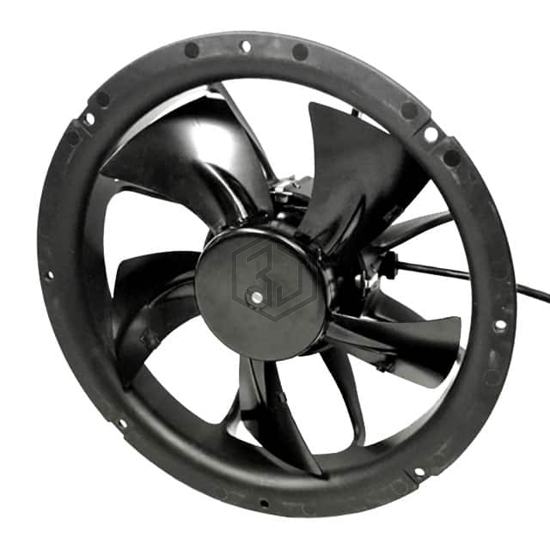

FAN 250X76MM 115VAC DUAL SPEED E
OA200EC-11-1WB is a AC Fans manufactured by Orion Fans. FAN 250X76MM 115VAC DUAL SPEED E. Key specifications: operating temperature -13 ~ 122°F (-25 ~ 50°C), voltage - rated 115VAC, size / dimension Round - 250mm Dia, termination 3 Wire Leads.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 115VAC |
| Size / Dimension | Round - 250mm Dia |
| Width | 76.10mm |
| Air Flow | 290.0 ~ 460.0 CFM (8.12 ~ 12.88m³/min) |
| Static Pressure | 0.280/0.460 in H2O (69.7/114.6 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Dual Speed, Electronic Commutation (EC), Thermal Overload Protector (TOP) |
| Noise | 44/55dB |
| Power (Watts) | 8.10W, 26.00W |
| RPM | 1400/2200 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Operating Temperature | -13 ~ 122°F (-25 ~ 50°C) |
| Approval Agency | cURus, TUV |
| Weight | 2.2 lbs (997.9 g) |
