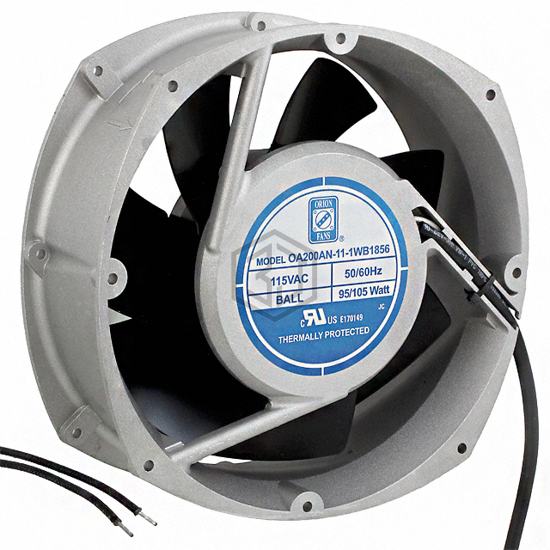

FAN AXIAL 200X70MM 115VAC WIRE
OA200AN-11-1WB1856 is a AC Fans manufactured by Orion Fans. FAN AXIAL 200X70MM 115VAC WIRE. Key specifications: operating temperature -22 ~ 176°F (-30 ~ 80°C), voltage - rated 115VAC, size / dimension Rectangular/Rounded - 220mm L x 200mm H, termination 2 Wire Leads.
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 115VAC |
| Size / Dimension | Rectangular/Rounded - 220mm L x 200mm H |
| Width | 70.00mm |
| Air Flow | 485.0 CFM (13.58m³/min) |
| Static Pressure | 0.930 in H2O (231.7 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Capacitor, Thermal Overload Protector (TOP) |
| Noise | 68.0dB |
| Power (Watts) | 105W |
| RPM | 3300 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Operating Temperature | -22 ~ 176°F (-30 ~ 80°C) |
| Approval Agency | cURus, TUV |
| Weight | 4 lbs (1.8 kg) |
