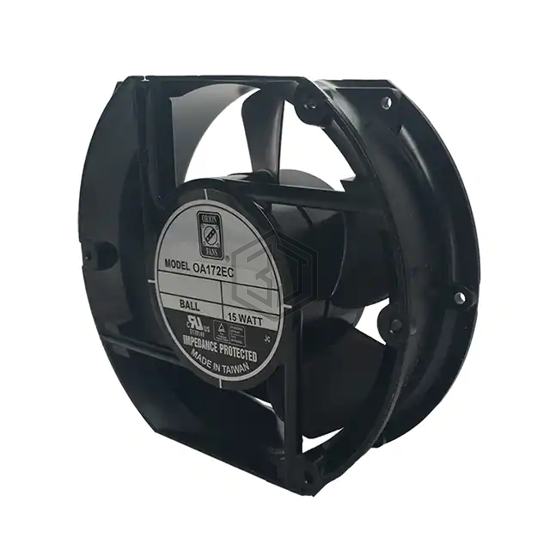

FAN 172X150X51MM 230VAC IP68ATEX
OA172EC-22-1WBIP68A is a AC Fans manufactured by Orion Fans. FAN 172X150X51MM 230VAC IP68ATEX. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 230VAC, size / dimension Rectangular/Rounded - 172mm L x 150mm H, termination 2 Wire Leads.
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 230VAC |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H |
| Width | 51.00mm |
| Air Flow | 220.0 CFM (6.16m³/min) |
| Static Pressure | 0.620 in H2O (154.4 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Electronic Commutation (EC), Thermal Overload Protector (TOP) |
| Noise | 57.0dB |
| Power (Watts) | 15.00W |
| RPM | 3000 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | ATEX, CE, cURus, UR |
| Weight | 1.5 lbs (680.4 g) |
Submit your RFQ for OA172EC-22-1WBIP68A and get a quote within 24 hours.
