IGBT 45A 600V TO-247

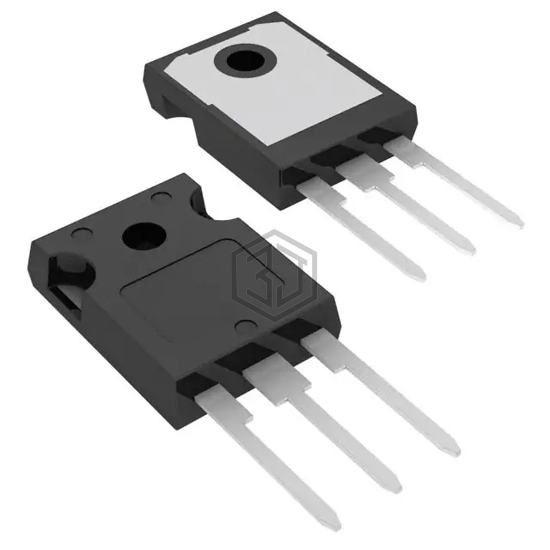

NGTB45N60S1WG is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 45A 600V TO-247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 90 A.
In Stock: 17,220
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 90 A |
| Current - Collector Pulsed (Icm) | 180 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 45A |
| Power - Max | 300 W |
| Switching Energy | 1.25mJ (on), 530µJ (off) |
| Input Type | Standard |
| Gate Charge | 125 nC |
| Td (on/off) @ 25°C | 72ns/132ns |
| Test Condition | 400V, 45A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 70 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
