IGBT 1200V 30A 156W TO247-3

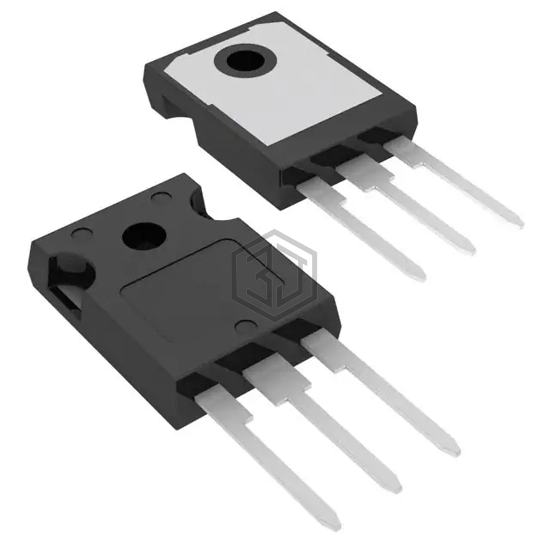

NGTB15N120LWG is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 1200V 30A 156W TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 30 A.
In Stock: 8,065
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 30 A |
| Current - Collector Pulsed (Icm) | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 15A |
| Power - Max | 229 W |
| Switching Energy | 2.1mJ (on), 560µJ (off) |
| Input Type | Standard |
| Gate Charge | 160 nC |
| Td (on/off) @ 25°C | 72ns/165ns |
| Test Condition | 600V, 15A, 15Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
