IC GATE DRVR HALF-BRIDGE HI SPD

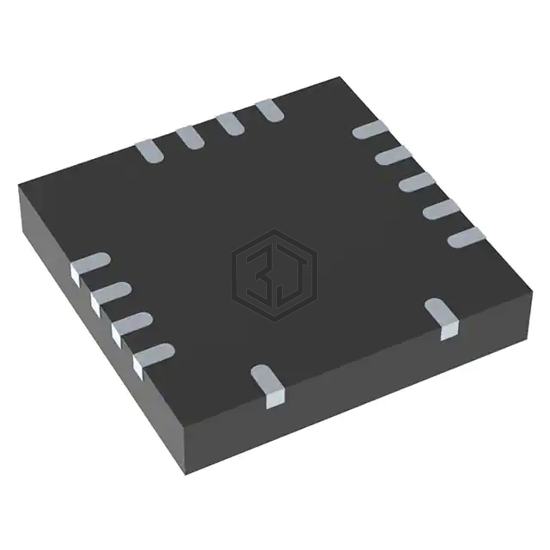

NCP51820AMNTWG is a PMIC - Gate Drivers manufactured by onsemi. IC GATE DRVR HALF-BRIDGE HI SPD. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), voltage - supply 9V ~ 17V, package / case 15-VFQFN.
In Stock: 6,200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | - |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 9V ~ 17V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 1A, 2A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 670 V |
| Rise / Fall Time (Typ) | 2ns, 1.5ns |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 15-VFQFN |
| Supplier Device Package | 15-QFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 1EDN7136GXTMA1 | Infineon Technologies | INT. POWERSTAGE/DRIVER PG-VSON-1 | 63% | View |
| 2EDF7175FXUMA2 | Infineon Technologies | IC GATE DRVR HALF-BRIDG DSO16 | 59% | View |
| 2ED020I12FIXUMA1 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE DSO18-2 | 59% | View |
| IR2011SPBF | Infineon Technologies | IC GATE DRVR HI/LOW SIDE 8SOIC | 55% | View |
| LM25101CMAX/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8SOIC | 50% | View |
| LM25101CSDX/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 10WSON | 50% | View |
Submit your RFQ for NCP51820AMNTWG and get a quote within 24 hours.
