IC PWR SWITCH N-CHAN 1:1 8DFN

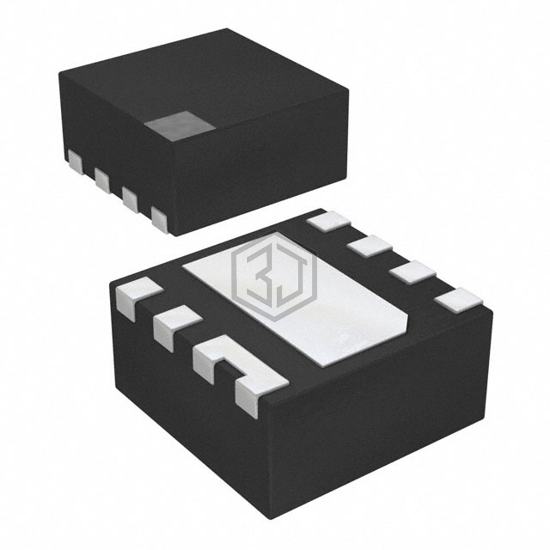

NCP45522IMNTWG-H is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR SWITCH N-CHAN 1:1 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 8-VFDFN Exposed Pad.
In Stock: 9,693
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | - |
| Output Type | N-Channel |
| Interface | - |
| Voltage - Load | 0.5V ~ 13.5V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 6A |
| Rds On (Typ) | 21.9mOhm |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (2x2) |
| Package / Case | 8-VFDFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP45523IMNTWG-L | onsemi | IC PWR SWITCH N-CHAN 1:1 8DFN | 100% | View |
| NCP45522IMNTWG-L | onsemi | IC PWR SWITCH N-CHAN 1:1 8DFN | 100% | View |
| NCP45523IMNTWG-H | onsemi | IC PWR SWITCH N-CHAN 1:1 8DFN | 100% | View |
| UCS3205T-E/Q8A | Microchip Technology | 22V 5A BI-DIRECTIONAL LOAD SWITC | 64% | View |
| UCS3205-E/Q8A | Microchip Technology | 22V 5A BI-DIRECTIONAL LOAD SWITC | 64% | View |
| R5527K001C-TR | Nisshinbo Micro Devices Inc. | IC PWR SWITCH N-CH 1:1 DFN1612 | 50% | View |
Submit your RFQ for NCP45522IMNTWG-H and get a quote within 24 hours.
