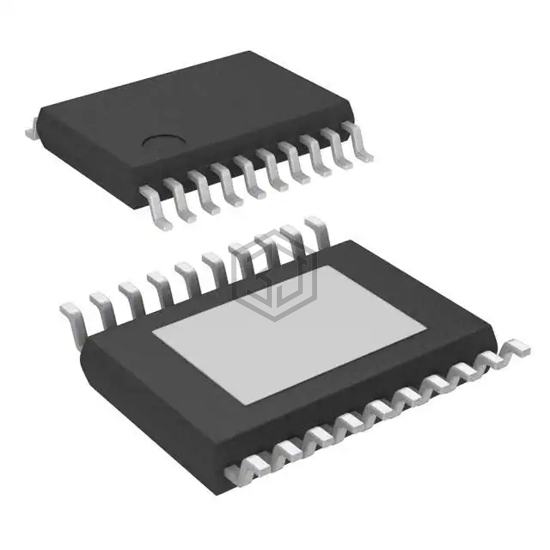

IC PWR DRVR N-CHAN 1:8 20HTSSOP
TPIC9201PWP is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR DRVR N-CHAN 1:8 20HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 0V ~ 5.25V, package / case 20-PowerTSSOP (0.173", 4.40mm Width).
In Stock: 58,100
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Switch Type | General Purpose |
| Number of Outputs | 8 |
| Ratio - Input:Output | 1:8 |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Interface | Serial |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 0V ~ 5.25V |
| Current - Output (Max) | 150mA |
| Rds On (Typ) | - |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-HTSSOP |
| Package / Case | 20-PowerTSSOP (0.173", 4.40mm Width) |
TPIC9201PWP is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPIC9201PWPR | Texas Instruments | IC PWR DRVR N-CHAN 1:8 20HTSSOP | 100% | View |
| TPL9201PWPR | Texas Instruments | IC PWR DRVR N-CHAN 1:8 20HTSSOP | 100% | View |
| TPL9201PWP | Texas Instruments | IC PWR DRVR N-CHAN 1:8 20HTSSOP | 100% | View |
| BD8LA700EFV-CE2 | Rohm Semiconductor | IC PWR SWTCH N-CHAN 4:8 24HTSSOP | 74% | View |
| SZNUD3124DMT1G | onsemi | IC PWR DRIVER N-CHANNEL 1:1 SC74 | 51% | View |
| NUD3124DMT1G | onsemi | IC PWR DRIVER N-CHANNEL 1:1 SC74 | 51% | View |
Submit your RFQ for TPIC9201PWP and get a quote within 24 hours.
