22V 5A BI-DIRECTIONAL LOAD SWITC

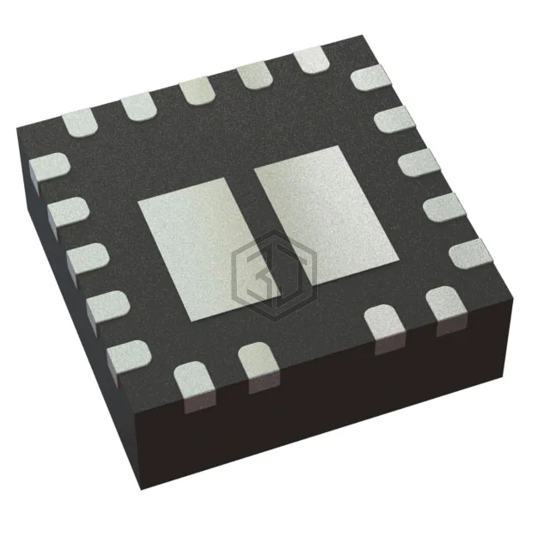

UCS3205T-E/Q8A is a PMIC - Power Distribution Switches, Load Drivers manufactured by Microchip Technology. 22V 5A BI-DIRECTIONAL LOAD SWITC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 20-VFQFN, 19 Leads, Exposed Pad.
In Stock: 9,009
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | - |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 2.85V ~ 22V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 5A |
| Rds On (Typ) | 30mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled |
| Fault Protection | Current Limiting (Fixed), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 19-VQFN (3x3) |
| Package / Case | 20-VFQFN, 19 Leads, Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCS3205-E/Q8A | Microchip Technology | 22V 5A BI-DIRECTIONAL LOAD SWITC | 100% | View |
| STCC2540IQTR | STMicroelectronics | IC PWR SWITCH N-CH 1:1 16VFQFPN | 69% | View |
| STCC5021IQTR | STMicroelectronics | IC PWR SWITCH N-CH 1:1 16VFQFPN | 69% | View |
Submit your RFQ for UCS3205T-E/Q8A and get a quote within 24 hours.
