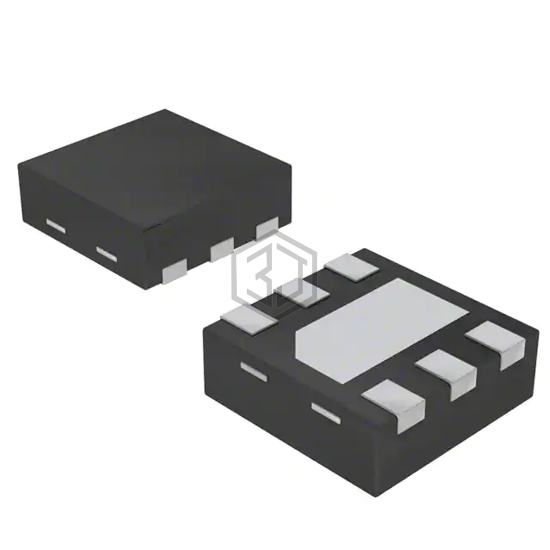

IC CURRENT LIMIT SWITCH 6-UDFN
NCP380LMU15AATBG is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC CURRENT LIMIT SWITCH 6-UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 6-UDFN Exposed Pad.
In Stock: 3,009
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 2.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.5A |
| Rds On (Typ) | 55mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Fixed), UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-UDFN (2x2) |
| Package / Case | 6-UDFN Exposed Pad |
NCP380LMU15AATBG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| XC8107BD15MR-G | Torex Semiconductor Ltd | IC PWR SWITCH P-CHAN 1:1 SOT25 | 100% | View |
| AP2191WG-7 | Diodes Incorporated | IC PWR SWITCH P-CHAN 1:1 SOT25 | 99% | View |
| FPF2165R | onsemi | IC PWR SWITCH P-CH 1:1 6MICROFET | 94% | View |
| FPF2194 | Fairchild Semiconductor | CURRENT LIMIT LOAD SWITCH | 94% | View |
| NCP382LD15AAR2G | onsemi | IC PWR SWITCH P-CHAN 1:2 8SOIC | 88% | View |
| AP2192AFGEG-7 | Diodes Incorporated | IC PWR SWITCH P-CHAN 1:2 8UDFN | 86% | View |
Submit your RFQ for NCP380LMU15AATBG and get a quote within 24 hours.
